Compact-Eco

  • Compact Eco XRF is a non-destructive solution that can be used to determine the chemical composition of a wide variety of sample types, including solids, liquids, and powders. Compact Eco is also used to determine the thickness and composition of layers and coatings.
    Compact Eco is a robust solution, combining high precision and accuracy. It can be readily automated for use in any industrial environment, plus Compact Eco provides both qualitative and quantitative types of information on a sample, thus making Compact Eco the best blend for Coating Thickness Measurement and Material Analyzer.
    A Robust instrument suited for coating thickness measurements and ideal for the analysis of gold alloys.

Technology:

  • Proportional Counter
  • Silicon Drift (Si-Pin) Technology:
  • Silicon Drift Detector (SDD) Technology:

Application

The instruments are perfectly designed to cater to material analysis and coating thickness measurement of multiple layers in various applications. Some of them are,

  • Electronic and Electrical components
  • Jewelry
  • Fastness
  • Liquid Analysis

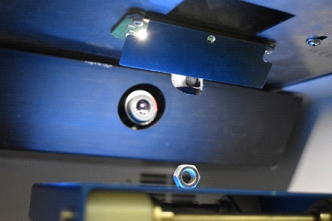

DTT Technology

The development of bench top XRF instruments has greatly expanded the range of samples suitable for analysis. The Top to Bottom XRAY helps in direct exposure of rays on the samples by reaching difficult areas like inner diameters of any given sample thus giving better penetration reach.

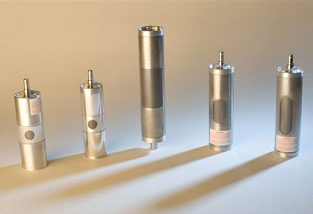

X-Ray Tube

Our X-Ray tubes are known for their performance and long life, making our XRF Machine an ideal solution for demanding applications for those requiring continuous operation.

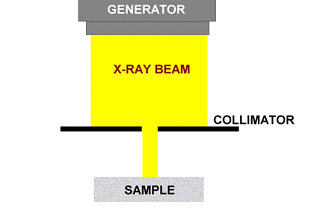

Collimators

A collimator is a device that narrows a beam of particles or waves. Narrow means to cause the directions of motion to become more aligned in a specific direction Compact-Eco has collimator options from 0.3 to 0.5 mmØ for generating narrow X-Ray beams for better accuracy and results.

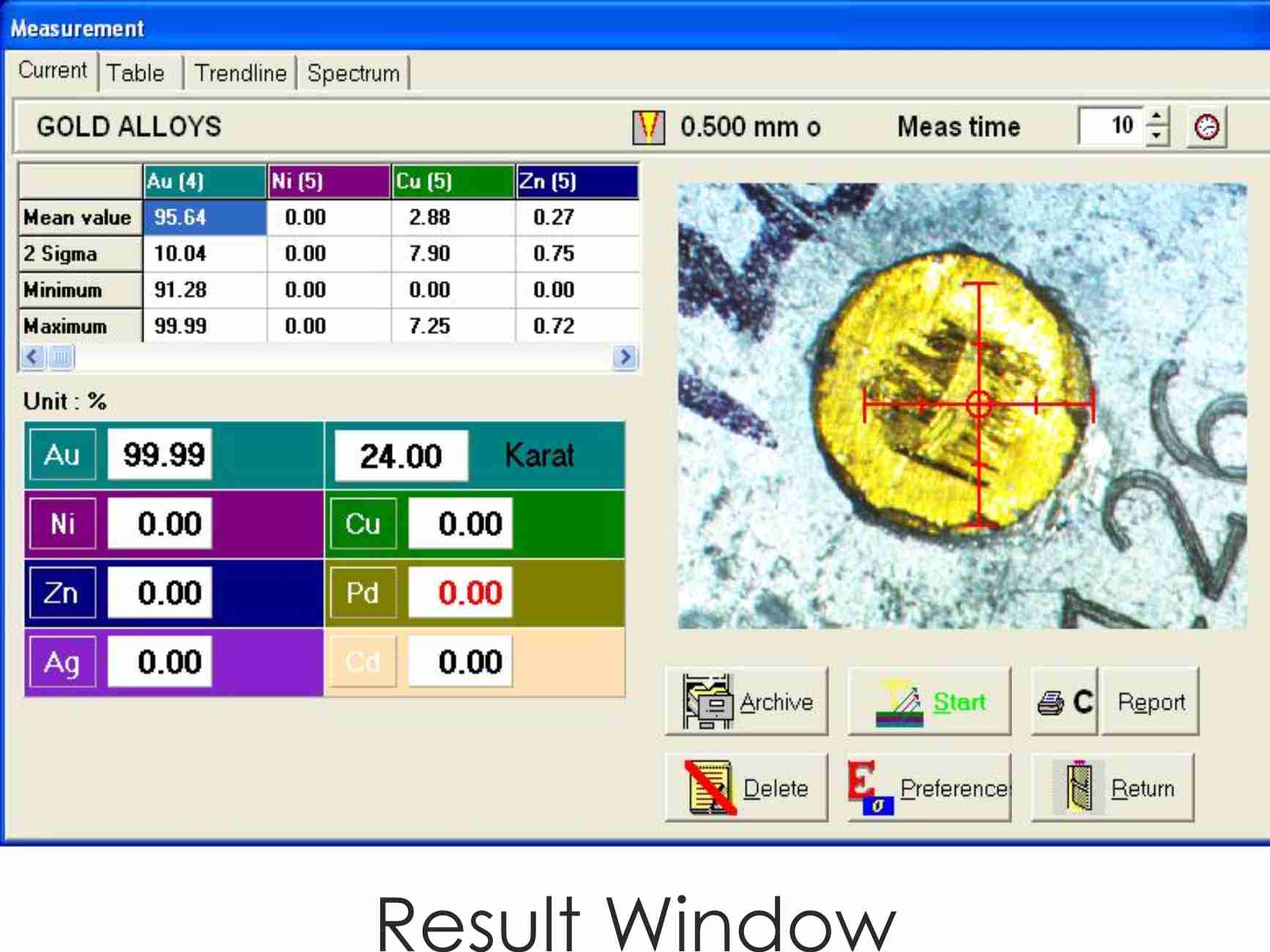

XMasteR Application

  • X-MasteR is the user-friendly operating software for the modern suit of X-Ray systems. This program used most modern software tools available for Windows® operating platforms. The main task of the operating software is the control of all system parameters such as high voltage settings, X-Ray tube current, display of collimators and filters as well as the collection and manipulation of the measurement data.

Speciality:

  • Empirical calibration mode for calibrating unit using well assessed standard samples.
  • Fundamental calibration mode for standard free calibrations.
  • Simultaneous quantitative measurement up to 8 elements.
  • Qualitative material identification upto 20 elements.
  • Spectrum analysis for semi-quantitative concentration measurement.
  • Statistical functions with mean value, standard deviation, high/low reading, trend line etc.

Calibration

  • Pre-calibrated for Gold and other precious metals.
